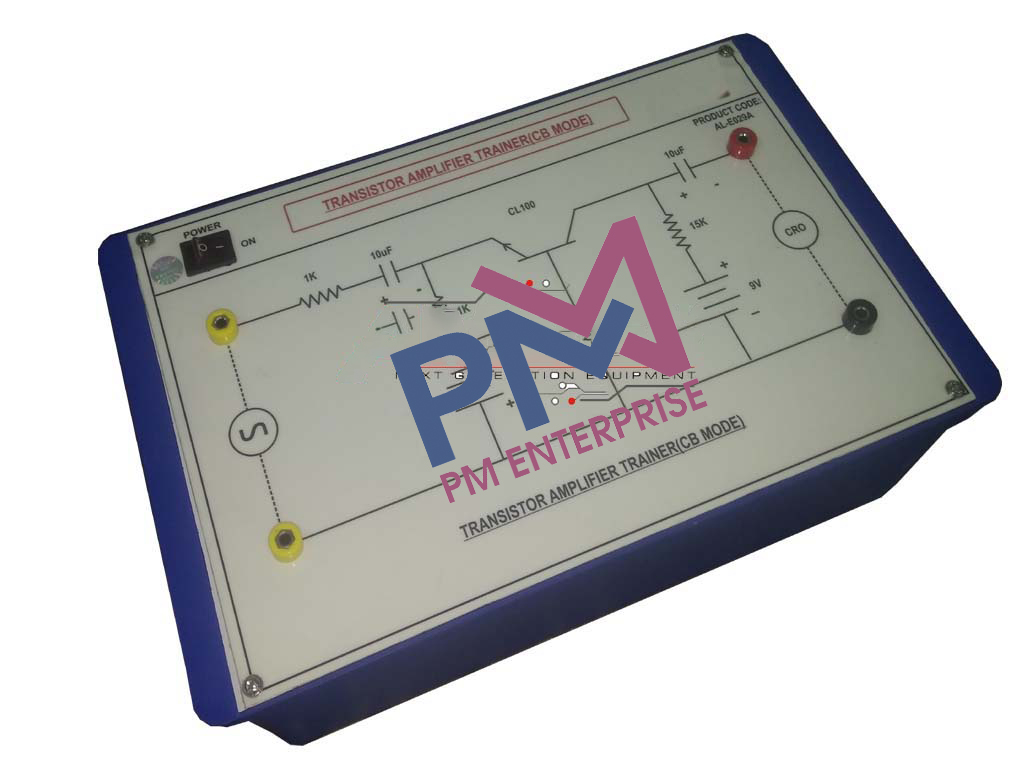

Description:
SCOPE OF LEARNING:
- Study of Transistor Amplifier in Different Mode
1. Common Base
TECHNICAL SPECIFICATIONS:
Power Supplies:
- DC Power Supply IC Regulated +9V DC, 150mA.
- DC Power Supply IC Regulated -1.5V DC, 150mA.
- Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
- Transistors
- Resistors
- Capacitors
SALIENT FEATURES:
- Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
- Fuse for Short Circuit protection
- Instruction manual.
- Connections are brought out through 4mm Colored Sockets.
- Patch Cords 4mm.
- The trainer is housed in ABS Plastic cabinet.
- Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
- Function Generator
- AC Milli Voltmeter
- CRO
